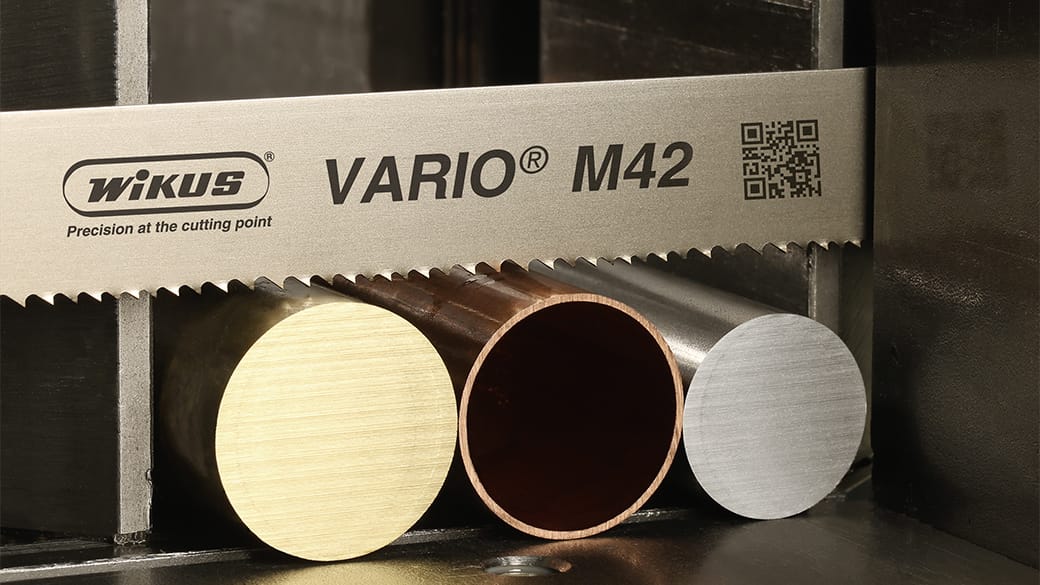

VARIO® M42
The all-purpose band saw blade for small cross-sections and profiles
Product level 2
Standard tooth S
Solid materials and profiles
Band width 6 x 0.65 - 54 x 1.3mm
The all-purpose band saw blade for small cross-sections and profiles
Full variability with the new VARIO® M42!
The bi-metal band saw blade VARIO® M42 profits from an innovative process design that leads to an improvement of performance and durability - with a huge application range.
The superfinishing not only leads to optimised contours on the cutting edges of the teeth and the associated improved cutting surfaces, but also to a reduction of the mechanical friction load on the carrier band which reduces the risk of a broken band.
Your advantages at a glance
improved production planningdue to consistently high blade-life
improved life of the carrier banddue to the superfinishing of the band surface
good cutting surfacedue to more precise set of the teeth
reduced burr formationdue to sharper cutting edges
highly smooth and quiet runningdue to variable tooth pitch and 0° rake angle
Application Range
Applications

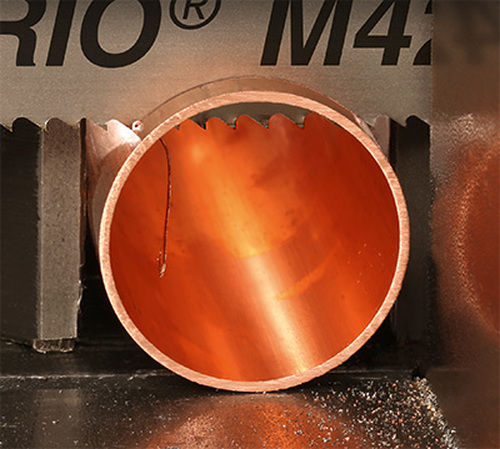

- thin-walled profiles and small solid materials
- all metals up to 1000 N/mm²
- single, layer and bundle cutting
Characteristics
- M42 tooth edge with 0° rake angle
- variable tooth pitch and standard set
NEW: QR code for ParaMaster® APP
When scanning the QR code on the blade with the ParaMaster® App, the blade data are transmitted automatically.
Dimensions
Tooth pitch in ZpZ
| Width x thickness | |
|---|---|
| mm | Inch |
| 6 x 0.65 | 1/4 x 0.025 |
| 6 x 0.90 | 1/4 x 0.035 |
| 10 x 0.90 | 3/8 x 0.035 |
| 13 x 0.65 | 1/2 x 0.025 |
| 13 x 0.90 | 1/2 x 0.035 |
| 20 x 0.90 | 3/4 x 0.035 |
| 27 x 0.90 | 1-1/16 x 0.035 |
| 34 x 1.10 | 1-3/8 x 0.042 |
| 41 x 1.30 | 1-5/8 x 0.050 |
| 54 x 1.30 | 2-1/8 x 0.050 |
Contact length[mm][Inch] | |
| 10-14 | 8-12 | 6-10 | 5-8 | 4-6 | 3-4 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| S | ||||||||||
| S | ||||||||||
| S | ||||||||||
| S | S | S | ||||||||
| S | S | S | ||||||||
| S | S | S | S | S | ||||||
| S | S | S | S | S | S | |||||
| S | S | S | S | S | ||||||
| S | S | S | S | |||||||
| S | ||||||||||
| < 20< 0.8 | 10-300.4-1.2 | 20-500.8-2 | 30-601.2-2.4 | 50-902-3.5 | 80-1503.2-5.9 | |||||
S = Standard tooth
The dimensions from 20 mm are available as new VARIO® M42.
The dimensions from 20 mm are available as new VARIO® M42.
- Case-hardened steels, spring steels and ball-bearing steels
- Rust-proof and acid-resistant steels (ferretic)
- Nitrided steel, high-speed steel and tool steel
- Construction, deep-drawn and machining steels
- Carbon steels, and quenched and tempered steels
- Cast iron
- Aluminium / aluminium alloys
- Non-ferrous metals
Any more questions?
Our experts in the WIKUS application engineering division will be happy to help you answer further technical questions connected to band selection and use.
