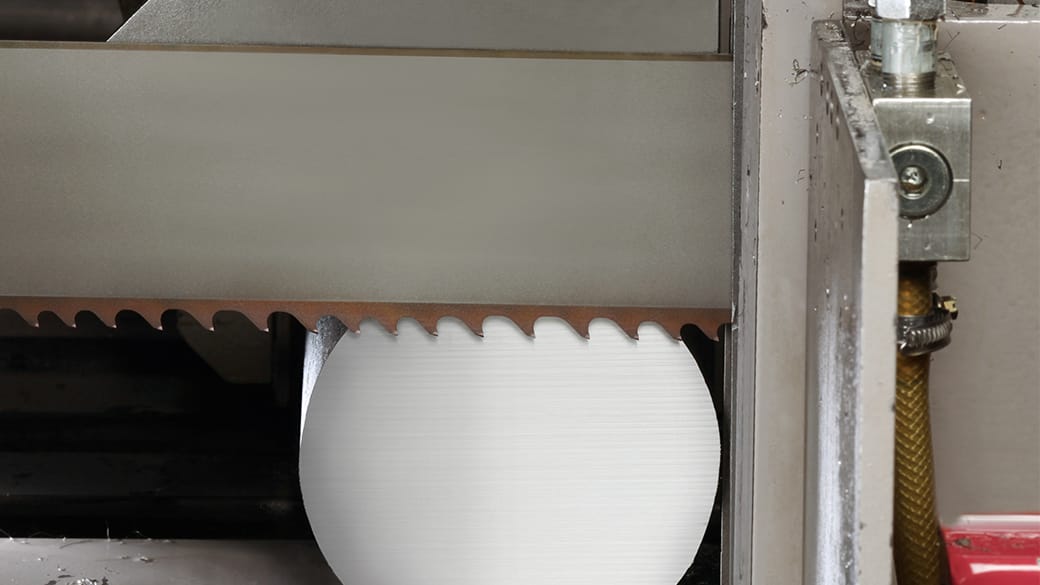

ARION® EG
High performance and excellent surface quality
Product Level S
Trapezoid tooth
Solid material
Band width 54 x 1.1 - 100 x 1.1mm
High performance and excellent surface quality
Application:
- solid materials on heavy-duty sawing machines
- large-scale and mass production for steel trade
- structural, case-hardened and tempering steels
Advantages:
- excellent surface quality
- Utmost productivity by maximum cutting performance
- lower material loss thanks to thin-cutting technology
- outstanding efficiency due to high blade-life
Features:
- carbide-tipped tooth edge with extremely wear-resistant hard material coating
- ground trapezoid tooth (ECODUR® geometry)
- thin-cutting technology with extremely high blade stability
Dimensions
Tooth pitch in ZpZ
| Width x thickness | |
|---|---|
| mm | Inch |
| 54 x 1.10 | 2-1/8 x 0.042 |
| 67 x 1.10 | 2-5/8 x 0.042 |
| 80 x 1.10 | 3-1/8 x 0.042 |
| 100 x 1.10 | 4 x 0.042 |
Contact length[mm][Inch] | |
| 3-4 | 2-3 | 1.4-2 | 1-1.4 | 0.7-1 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| T | T | |||||||||
| T | T | T | ||||||||
| T | T | T | ||||||||
| T | T | T | T | |||||||
| 90-1503.5-5.9 | 130-2505.1-9.8 | 250-5009.8-19.7 | 500-80019.7-31.5 | 800-200031.5-78.7 | ||||||
T = Trapezoid tooth
- Case-hardened steels, spring steels and ball-bearing steels
- Nitrided steel, high-speed steel and tool steel
- Construction, deep-drawn and machining steels
- Carbon steels, and quenched and tempered steels
- Cast iron
Any more questions?
Our experts in the WIKUS application engineering division will be happy to help you answer further technical questions connected to band selection and use.
