PROFLEX® PREMIUM SW M42
The coated special design for residual stress materials
Product level 2
Profile tooth
Profiles
Band width 41 x 1,3 - 67 x 1,6mmBand width 1-5/8 x 0.050 - 2-5/8 x 0.063 Inch
Add to watchlistAdded to watchlist
has been added to the watchlist.
View watchlisthas been removed from the watchlist.
View watchlist

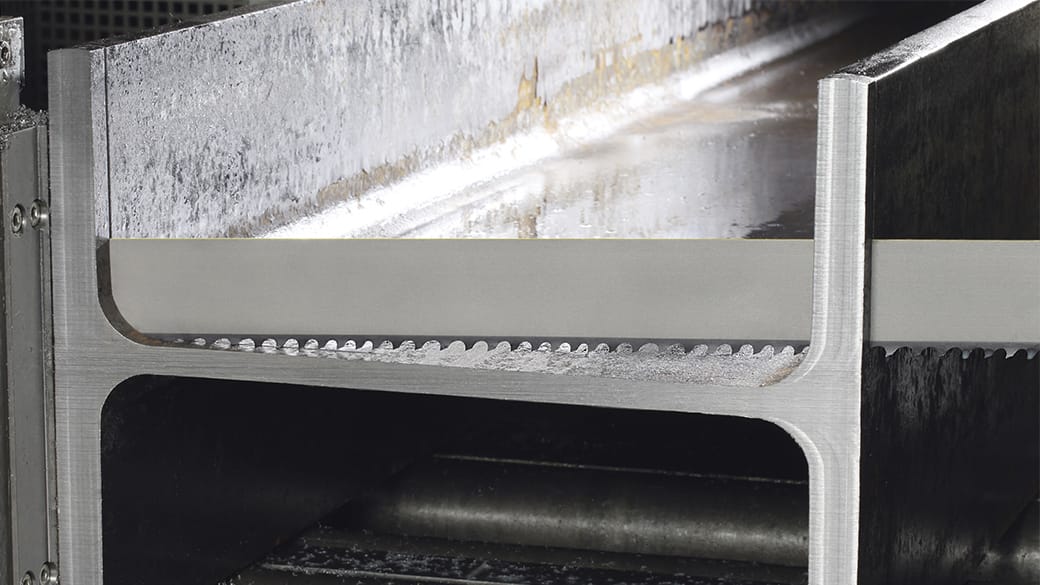

The coated special design for residual stress materials
Applications
- Profiles and structurals with residual stress
- For steel construction and industrial profile cuts
Advantages
- Productivity increase by high cutting rate
- No jamming in the cutting channel
- Fewer blade changes due to increased blade-life
Features
- Tooth edge and back edge coated with wear protection
- Extra wide step set and variable tooth pitch
Dimensions
Tooth pitch in tpi
| Width x thickness | |
|---|---|
| mm | Inch |
| 41 x 1.30 | 1-5/8 x 0.050 |
| 54 x 1.60 | 2-1/8 x 0.063 |
| 67 x 1.60 | 2-5/8 x 0.063 |
Contact length[mm][Inch] | |
| 3 - 4 | 2 - 3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | P | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| P | P | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| P | P | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 80-1603.1-6.3 | 150-3005.9-11.8 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
P = Profile tooth
- Case-hardening steels, spring steels and ball-bearing steels
- Rust-proof and acid-resistant steels (ferretic)
- Nitrided steel, high-speed steel and tool steel
- Construction, deep-drawn and machining steels
- Carbon steels, and quenched and tempered steels
- Cast iron
- Aluminium / aluminium alloys
- Non-ferrous metals
has been added to the watchlist.
View watchlisthas been removed from the watchlist.
View watchlistAny more questions?
The experts of our Technical Competence Center are happy to help you answer further technical questions connected to band selection and use.
