DUROSET^® NE

The set special design for non-ferrous metals

Product level 2
Hook tooth
Solid materials
Band width 20 x 0.9 - 34 x 1.1mm
Band width 3/4 x 0.035 - 1-3/8 x 0.042 Inch

Request a quote

Add to watchlistAdded to watchlist

Request a quote

Title *

Name *

Surname *

Company *

Customer number

Street

No.

Zip code

Place

Country *

E-mail *

Telephone

Message

I consent to the processing of my data in the context of responding to the request. I have taken note of the revocation instructions and consequences in the privacy policy.

I would like to be informed regularly about news from WIKUS and consent to receiving information by e-mail including performance tracking. I have taken note of the objection options and consequences in the data protection information.

DUROSET® NE — The set special design for non-ferrous metals

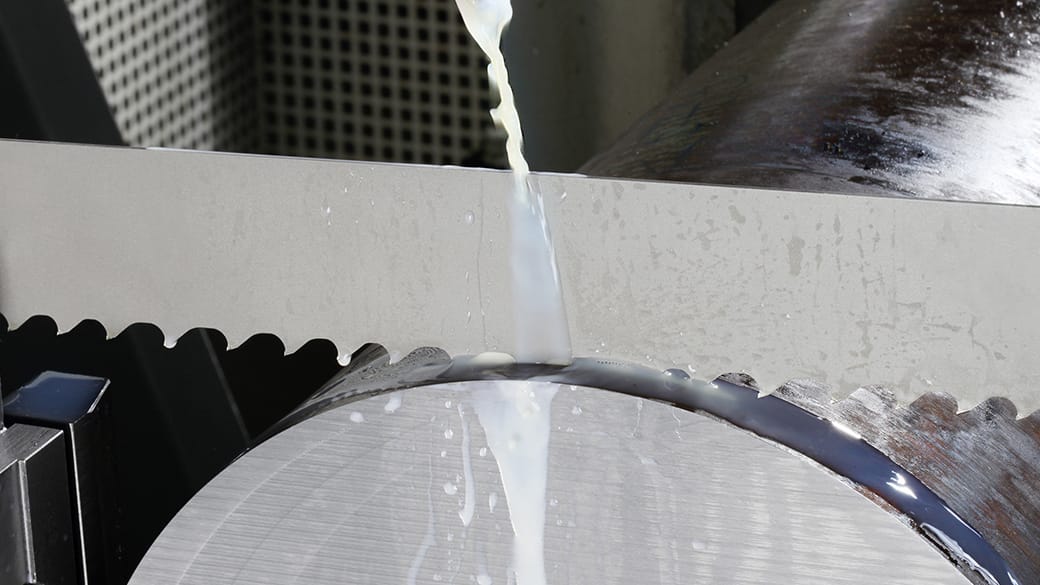

The carbide band saw blade was specially developed by WIKUS for foundry applications for sawing non-ferrous metals. It is particularly convincing for contour and radius cuts on feeders and casting burrs, which are carried out with a manual feed.

Of course, the band saw blade also proves itself in automatic operation. With its high blade-life, it achieves disproportionately high cutting rates even under fluctuating conditions.

Application

Contour and radius cuts on non-ferrous metals
Automatic and especially manual feed
Optimal sawing tool for manual machining of castings

Advantages

High cutting performance increases productivity
Particularly high resistance to abrasive wear
Very high blade-life even in fluctuating conditions

Features

Extra wide set for contour and radius cuts in non-ferrous metals
Tooth edge made of specific carbide with special geometry for foundries
Polished trapezoid tooth with positive rake angle

Functional design against abrasive wear

The structure of the DUROSET^® NE consists of a carrier band combined with a tooth edge made of specific carbide. The carbide cutting material, which is specially adapted to non-ferrous metals, results in particularly high protection against abrasive wear.

Dimensions

Tooth pitch in ZpZ

Width x thickness
mm	Inch
20 x 0.90	3/4 x 0.035
27 x 0.90	1-1/16 x 0.035
34 x 1.10	1-3/8 x 0.042
Contact length[mm][Inch]


3	2
K
K
K	K
120-2004.7-7.9	200-4007.9-15.7

K = Hook tooth

Aluminium / aluminium alloys
Non-ferrous metals

Product data sheet DUROSET^® NE

Download

pdf DUROSET^® NE Data Sheet

Download (83,01 KB)
