MARATHON^® M42

The All-Rounder for Small and Large Cross Sections

Product level 2
Hook tooth
Solid materials
Band width 13 x 0.65 - 80 x 1.6mm
Band width 1/2 x 0.025 - 3-1/8 x 0.063 Inch

Request a quote

Add to watchlistAdded to watchlist

Request a quote

Title *

Name *

Surname *

Company *

Customer number

Street and no.

Zip code

Place

Country *

E-mail *

Telephone

Message

I consent to the processing of my data in the context of responding to the request. I have taken note of the revocation instructions and consequences in the privacy policy.

I would like to be informed regularly about news from WIKUS and consent to receiving information by e-mail including performance tracking. I have taken note of the objection options and consequences in the data protection information.

MARATHON® M42 – The All-Rounder for Small and Large Cross Sections

The MARATHON^® M42 is the epitome of the economical band saw blade and stands for a broad application spectrum with consistently high quality.
The bimetal band saw blade for service-oriented customers is optimized for more complex performance and support requirements in the sawing process, such as those required for industrial applications.

The high quality features of MARATHON^® M42 are now even more flexible in applications thanks to the expansion of the product line and are thus available for small cross-sections up to large solid materials.

The superfinishing of the band saw blade and the sharp cutting edges increase the blade-life and improve the quality of the cut. The fine band surface protects the machine’s guides and increases fatigue strength.

Learn more about MARATHON® M42 in the product video.

Application Range

Application

Industrial applications
Medium-sized to large work pieces
All metals up to 1000 N/mm² tensile strength
Solid material
Single, layer and bundle cutting
Mixed operation

Advantages

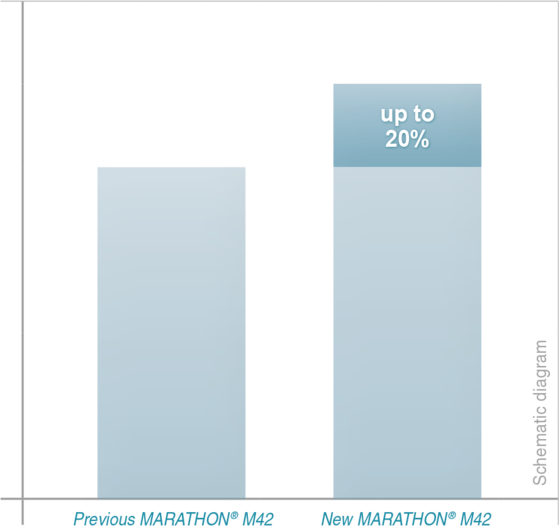

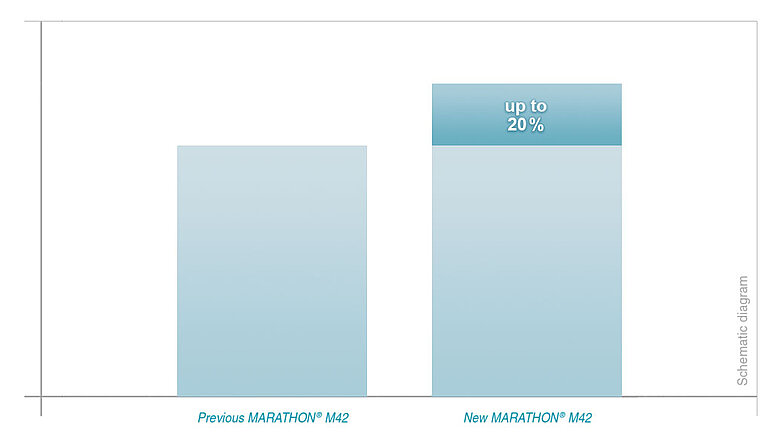

Long blade-life and high productivity due to excellent product characteristics
Less frequent blade changes due to broad application spectrum
Low noise levels due to highly smooth and quiet running
Lower material allowances required due to straight cuts
Reduced post-processing due to finer cutting surface
Significant costs per cut savings

Features

M42 cutting edge
Rake angle: positive (hooktooth)
Constant or variable tooth pitch with standard setting
High precision in straightness and planeness of the strip

When scanning the QR code on the blade with the ParaMaster^® App, the blade data are transmitted automatically.

Dimensions

Tooth pitch in tpi

Width x thickness
mm	Inch
13 x 0.65	1/2 x 0.025
13 x 0.90	1/2 x 0.035
20 x 0.90	3/4 x 0.035
20 x 1.10	3/4 x 0.042
27 x 0.90	1-1/16 x 0.035
34 x 1.10	1-3/8 x 0.042
41 x 1.10	1-5/8 x 0.042
41 x 1.30	1-5/8 x 0.050
54 x 1.30	2-1/8 x 0.050
54 x 1.60	2-1/8 x 0.063
67 x 1.60	2-5/8 x 0.063
80 x 1.60	3-1/8 x 0.063
Contact length[mm][Inch]

variable							constant
5 - 8	4 - 6	3 - 4	2 - 3	1.4 - 2	1 - 1.4	0.75 - 1.25	6	4	3	1.25
							K*	K*
							K*	K*	K*
							K	K	K
									K
K	K	K	K
K	K	K	K	K						K
	K	K	K	K
K	K	K	K	K
	K	K	K	K
	K	K	K	K	K
	K	K	K	K	K	K
			K	K	K	K
30-601.2-2.4	50-1002-3.9	80-1703.1-6.7	150-3005.9-11.8	250-5509.8-21.6	500-100019.7-39.4	700-140027.6-55.1	50-802-3.1	80-1203.1-4.7	120-2004.7-7.9	300-80011.8-31.5

K = Hook tooth

*Optimised superfinish:
With immediate effect, this dimension is now also converted to the new inline production. As a result, the saw band gains a high quality in the form of a glossy, smooth surface. The fine band surface protects the band guides of the machine and increases the fatigue strength.

Case-hardening steels, spring steels and ball-bearing steels
Rust-proof and acid-resistant steels (ferretic)
Nitrided steel, high-speed steel and tool steel
Construction, deep-drawn and machining steels
Carbon steels, and quenched and tempered steels
Cast iron
Aluminium / aluminium alloys
Non-ferrous metals

Product data sheet MARATHON^® M42

Download

pdf MARATHON^® M42 Data Sheet

Download (294,74 KB)

Info: Download the data sheets of multiple products

You have the possibility to compile the data sheets of all products available on the website into an individual catalogue. Simply click on “add to watchlist” in the product overview or on the individual product pages. You can edit the catalogue individually in the watchlist and then have it sent to you by e-mail as a PDF.
