SELEKTA® GS PREMIUM M42
High performance, Superfinishing and extra blade-life
Product level 3
Hook tooth
Solid materials
Band width 34 x 1.1 - 80 x 1.6mm
High performance, Superfinishing and extra blade-life
With the new development of the hard material-coated version of SELEKTA® GS M42 we meet high requirements on performance and lifetime.
With the special coating in combination with the patented tooth geometry it is possible to achieve a considerable increaseof blade-life compared to the uncoated version. The cutting performance is at least the same. Furthermore, the processed material is characterized by a high surface quality.
Your advantages at a glance
high cutting performancedue to patented performance and surface teeth
high efficiencydue to an excellent blade-life

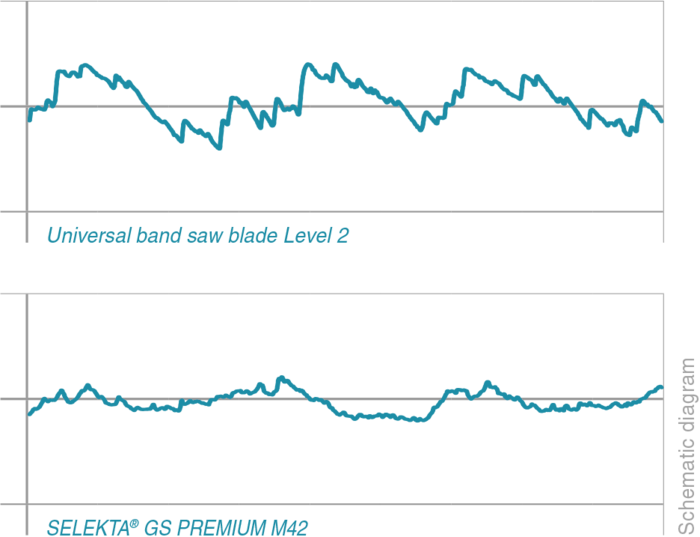

low finishingdue to perfect surface quality
lower material allowanceby exact gating
low frictiondue to back edge coating
Application Range
Applications
- solid material
- metals up to 1400 N/mm² tensile strength
Characteristics
- M42 tooth edge with special coating
- patented performance and surface teeth
- back edge coating for less friction
- mooth, low vibration and very long running
Dimensions
Tooth pitch in ZpZ
| Width x thickness | |
|---|---|
| mm | Inch |
| 34 x 1.10 | 1-3/8 x 0.042 |
| 41 x 1.30 | 1-5/8 x 0.050 |
| 54 x 1.60 | 2-1/8 x 0.063 |
| 67 x 1.60 | 2-5/8 x 0.063 |
| 80 x 1.60 | 3-1/8 x 0.063 |
Contact length[mm][Inch] | |
| 3-4 | 2-3 | 1.4-2 | 1-1.4 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| K | K | |||||||||
| K | K | |||||||||
| K | K | |||||||||
| K | ||||||||||
| K | ||||||||||
| 90-1503.5-5.9 | 150-2505.9-9.8 | 250-5009.8-19.7 | 500-80019.7-31.5 | |||||||
K = Hook tooth
- Case-hardened steels, spring steels and ball-bearing steels
- Rust-proof and acid-resistant steels (ferretic)
- Nitrided steel, high-speed steel and tool steel
- Construction, deep-drawn and machining steels
- Carbon steels, and quenched and tempered steels
- Cast iron
- Aluminium / aluminium alloys
- Non-ferrous metals
Any more questions?
Our experts in the WIKUS application engineering division will be happy to help you answer further technical questions connected to band selection and use.
